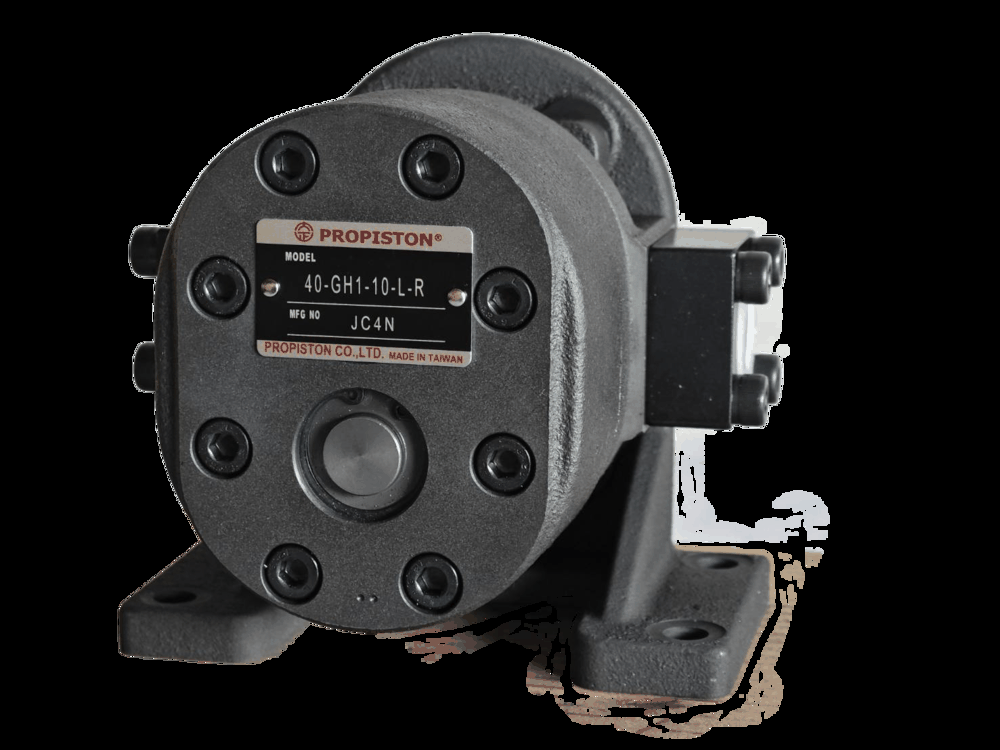

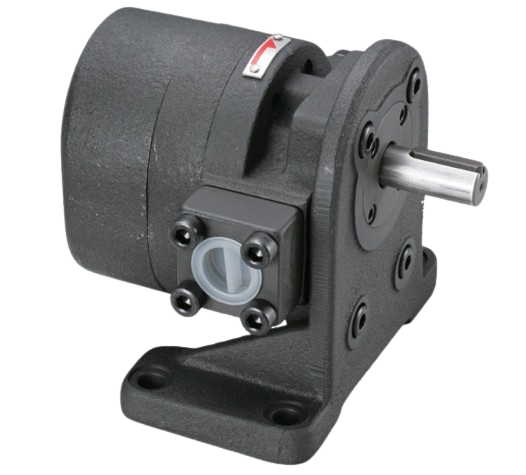

Chemical pump
*This series of gear pumps has small discharge pulsation, stable high-pressure continuous operation, long life, and can fully exert high-pressure performance after long-term use. It is suitable for general industrial machinery, civil construction, heavy-duty machinery and other special machines. There are also special pumps for chemical industry.
Model :
GH1
GH1 -※-※-※
1 2 3 4
| 1 |
serial number |
|---|---|
| 2 |
Foot type Discharge volume |
| 3 | chemical use |
| 4 |
Rotation direction (viewed from the shaft side) Assembly type Clockwise direction Counterclockwise direction |
圖中標註 / Legend / Chú thích: 全效率 = Overall efficiency / Hiệu suất tổng · 容積效率 = Volumetric efficiency / Hiệu suất thể tích · 吐出量 (Delivery) = Lưu lượng · 入力 = Input power / Công suất đầu vào · 壓力 = Pressure / Áp suất
圖中標註 / Legend / Chú thích: 入油孔 = Oil inlet / Cửa vào dầu · 主軸尺寸圖 = Shaft dimensions / Kích thước trục chính · 鑽深 = Drill depth / Độ sâu khoan · 孔 = Hole / Lỗ
