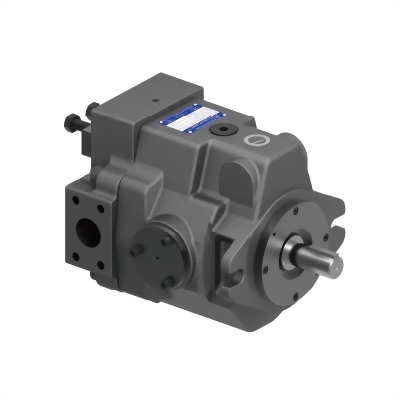

A SERIES VARIABLE PISTON PUMPS

Low noise and high efficiency.
Accomplishment of energy-saving and low heat generation.

Model : A10 / 16 / 22 / 37 / 56

A16-F R 01-B-S-K

1 2 3 4 5 6 7

1	Series A10 (10.8 cm3/rev ) A16 (15.8 cm3/rev ) A22 (22.2 cm3/rev ) A37 (36.9 cm3/rev ) A56 (56.2 cm3/rev )
2	Type of Mounting F：Flange Mounting
3	Direction of Rotation (View from the Shaft End ) R：Clockwise (Normal )
4	Control Type 01：Pressure Compensator Valve
5	Pressure Adj. Range A10 / A16 / A22	Pressure Adj. Range A37 / A56
5	A：0.2~4.0 MPa B：1.2~7 MPa C：2.0~16 MPa H：1.2~21MPa	B：1.2~7 MPa C：2.0~16 MPa H：1.2~21MPa
6	Port Position S：Side Port (Normal ) None：Axial Port
7	Shaft Extension K : Keyed Shaft

Model No.	Geometric Displacement (cm3/rev)	Min. Adj. Flow (cm3 /rev)	Operating Pressure MPa		Rotation Speed Range (r/min)		Weight (kg)
Model No.	Geometric Displacement (cm3/rev)	Min. Adj. Flow (cm3 /rev)	*1Pressure MPa	*2Intermittent	Max.	Min.	Weight (kg)
A10-FR01	10.0	2	16	21	1800	600	10.9
A16-FR01	15.8	4	16	21			19.3
A22-FR01	22.2	6	16	21			19.3
A37-FR01	36.9	10	16	21			27.6
A37-FR01-S	36.9	10	16	21			30.5
A56-FR01	56.2	12	16	21			35
A56-FR01-S	56.2	12	16	21			37

*1Whenever setting pressure , make sure the full cut-off pressure never exceeds the maximum intermittent pressure.
*2Care should be taken in cases of used at a higher pressure than the rated pressure, because operating terms may be restricted. Consult factory or PROPISTON sales representative for further information.

A16-Performance Characteristic Curve
